12mm Miniature Lm Guide Mgn12 with Mgn12h Slider Carriage
Description
Basic Info
| Model NO. | MGN12 |
| Origin | China |
| HS Code | 8466939000 |
| Production Capacity | 100000PCS/Year |
Product Description

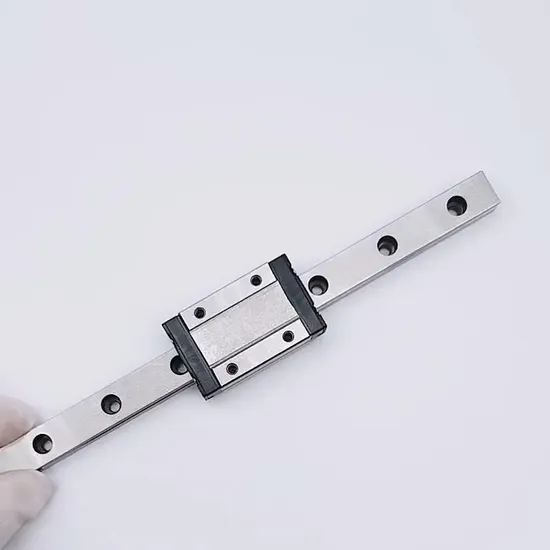

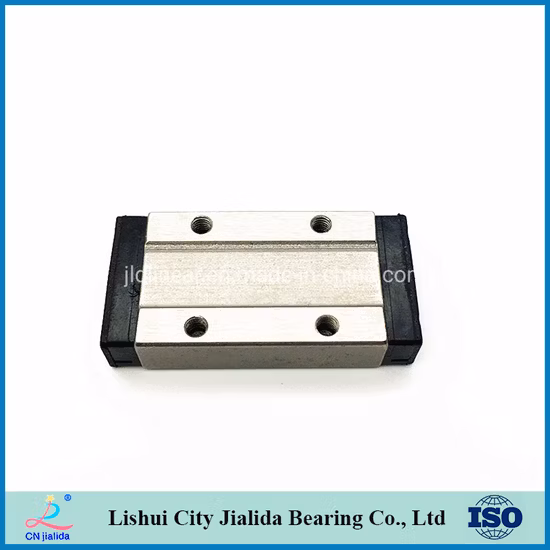

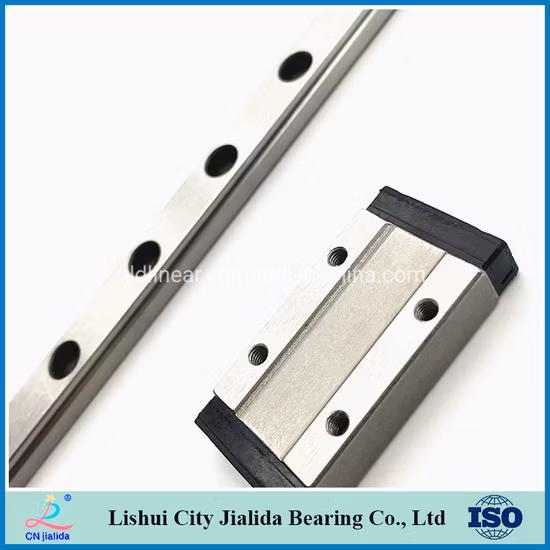

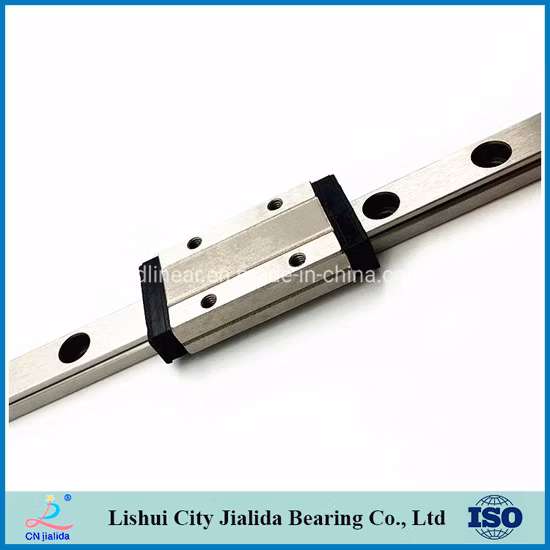

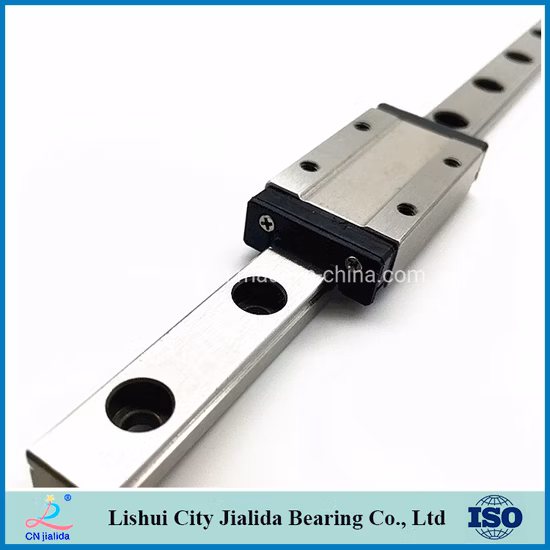

12mm Miniature LM Guide MGN12 with MGN12H Slider Carriage
Mini Linear Guide is small in size and lightweight, especially suitable for small equipment. Adopting 4-point contact design, it can bear load from every direction, and has good strength and high accuracy. Designed with ball retainer, which allows interchangeability in the case of small precision. Block has lubrication system; lubrication oil can be easily put into the oil inlet on the side. Widely used for automatic equipment, precision measuring equipment, and many other machines that need precision linear movement.Material: Gcr15 Steel or Stainless Steel
| Product | Mini Linear Guide with Linear Block | |||
| Model No. | Rail MGN12 with MGN12H Linear Block | |||
| Height (Block) | 10mm | |||
| Width (Block) | 27mm | |||
| Hole (Block) | 4-M3x3.5 | |||
| Length(Block) | 45.4mm | |||
| Height (Rail) | 8mm | |||
| Width(Rail) | 12mm | |||
| Hole Distance(Rail) | 25mm | |||
| Hole Diameter | D:6mm; d:3.5mm | |||
| Max Length(Rail) | 1600mm | |||
| Material | Bearing steel or Stainless Steel | |||
| Weight | Rail:0.65KG/M;Block:0.054KG/PC | |||
1. Tiny and light weight, suitable for miniature equipment.
2. All materials for block and rail, including rolling balls and ball retainers, are in special grade of stainless steel for
anti-corrosion purpose.
3. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
4. Steel balls will be held by miniature retainer to avoid balls from falling out even when the blocks are removed from the rail installation.
5. Interchangeable types are available in certain precision grades.Applications
1.Semiconductor equipments
2.PCB assembly equipments
3.Medical equipments
4.Robots
5.Precision measuring equipments
6.Office automation equipments
7.Other miniature sliding mechanism
Company Profile
Lishui City Jialida Bearing is a professional manufacturer of linear motion products with many years' experience. We are specialized in the producing linear shaft, linear guides, ball screws, linear bearings, linear guide blocks, ball screw end supports, linear rails, cam followers with good quality and competitive price. Our company is located in Lishui city, Zhejiang province, close to Ningbo port and Yiwu city.
Our products are widely used in precise machines, fitness equipment, printing machines, packing machines, medical and food machines, textile machinery and other machines and supplementary equipment. Our products sell well in North America, West Europe, Australia, Southeast Asia, Middle East, South America and other regions.
After Sales Service
Our Quality:
Quality is the life . We use only the best quality material to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.Warranty: All products may have problem after used by a period of time. We provide 1 year warranty for all products. Payment: We accept payment via TT (Bank transfer), Paypal,Western Union, and Money Gram.We accept bank transfer for large orders. For small order, you'd better pay via Paypal,Western union or Money GramShipping: We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
FAQ1. Are you factory or trading company?
We are professional manufacturer with most competitive price and high quality, 15 year's experience.
2.What's your product range?We are specialized in producing linear shafts, linear bearings, linear guides, linear rails, ball screws,cam follower and other linear motion units.3.Do you offer OEM&ODM services?Yes, OEM, ODM is welcomed4.How Can I get some samples?We are honored to offer samples. You are requested to pay the shipping cost and some samples cost.5.What does your factory do about quality control?We uphold the tenet of "Quality is the future, we have passed ISO9001 certification, and we have strict procedures to control quality.6. How can I get a quotation?You can send quotation below or email to us. you can contact dirrectly with us through TM or WhatsApp,Skype as you like.Call any time if you are urgent.
